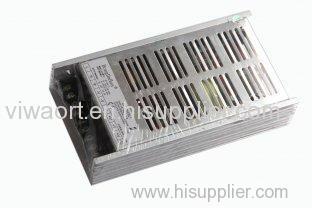

Highly Reliable LED Driver Power Supply 200W 12VDC 16.7A IP20 EN55022 class A

Place of Origin:

Zhejiang, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: HG-200-12

Highly Reliable LED Driver Power Supply 200W 12VDC 16.7A IP20 EN55022 class A

Highly Reliable LED Driver Power Supply 200W 12VDC 16.7A IP20 EN55022 class A

Competitive Advantage:

1.built-in EMI filter, 100% load test

2. Strong power structure, durable.

3.Full range of input voltage

4.output voltage accurate and stable

5.Output over-voltage, over-current and short-circuit protection

6.Output low ripple and noise

7.Two year warranty

8.Average working no trouble 50, 000 hours

Specifications:

Product Electric Parameters
Input specification	Input voltage	AC176V---264V
	Input frequency	47-63Hz
	Input surge	20A@120VAC 40A@230VAC
Output specification	Output voltage can be adjusted	±10%
	Start-up time	1S(input230V, Io=100%)
	keep time	20mS (input230V, Io=100%)
	Voltage regulation	(Full load) 0.5%
Protection function	Overload protection	105% - 150% rated power, automatic recovery
Protection function	Over-voltage protection	105% - 150% of the rated voltage
Insulation intensity	Input---output	1500VAC/1min
	Input---ground	1500VAC/1min
	Input---ground	500VAC/1min
Safety standards	According with GB4943, EN60950-1 ; EPA3050B:1996; EN1122:2001 ; EPA3052:1996; EPA3060A; EPA7196; EPA3540C;EPA8270C standards.
E M C standards	According with EN55022 class A EN61347-2-13:2008 standards
Environmental	working temperature	- 20 ° ~ 60 ° c / 20% ~ 90% RH (no frost)
